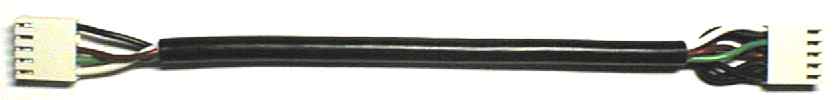

Description: Network Cable with built in termination

This cable is used to connect the OOPic to another OOPic through the networked I2C bus.  This cable has built in pull up terminators so that the user does not have to add a terminator to the bus which is required.  Only one of these cable is required per network, regardless how many OOPics are connected. If more that two OOPics are going to be connected together, the the other unites need to be connected by means of the network cable without the termination built in.

This cable connect the Data, Clock, Ground and Reset lines between each OOPic in the network.

This cable is 17.75 cm in length end to end.

This cables is made of high quality parts and is assembled in the United States.
