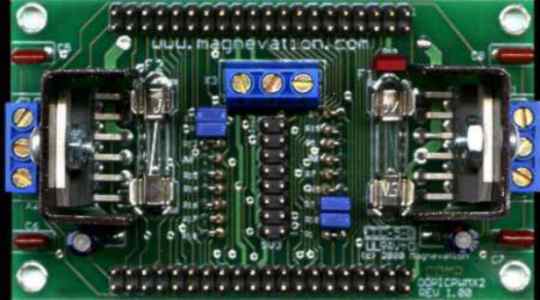

Description: Assembled and tested PWM Driver board for the OOPic.
| Power supply requirements - 12 to 55 volts DC 0- 3 amps per channel. |
| Dual independent PWM channels, each channel is independently powered and fused with speed, direction, brakes, thermal flag and analog output to indicate motor current. |
| Based on Nation Semiconductors LMD18200T H-bridge Driver IC's. |
| Data Pass - Thru design allow other accessories to be connected to the OOPic. |
| Break out port allows access to all 4 analog input channels on the OOPic as well as several important digital I/O channels. |
| Break Out Port also doubles as a Joystick input port utilizing standard inexpensive joysticks and back plane headers used by Personal Computers. |
| Small size, same as the OOPic 3.5" X 2.0" |
| Circuit Board is manufactured and assembled in the U.S.A. and is of the highest quality. These boards are double sided, tined and plated thru holes, with solder mask on both sides, and parts legend on the top side. The component holes are slightly larger than most other cards on the market to allow easy changes and modification by the end user. These Assembled boards have been electrical tested and visually inspected prior to shipping. |
