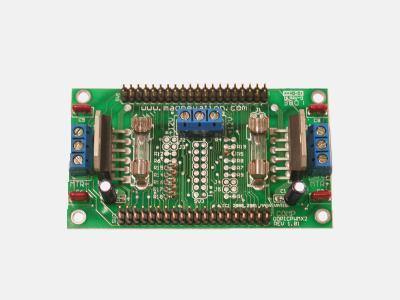

Description: Limited Edition (LT)  - Dual  PWM Driver board for the OOPic.


Dual independent PWM channels, each channel is independently fused  with speed, direction, brakes, thermal flag and analog output to indicate motor current.
Data Pass - Thru  design allow other accessories to be connected to the OOPic.
Based on Nation Semiconductors LMD18200T   H-bridge Driver IC's.
.This board functions as motor driver only.  For use in applications that run at a lower current than 3 amps continuous and with occasionally running at 3 amps for short durations.  This board does not have the joystick interface, OOPic Power jumper, Thermal Flag or Current feedback Jumpers.  All other aspects of this board are the same as the full version.  You may add the parts later as your application's needs grow.
Small size, same as the OOPic 3.5" X 2.0"
Circuit Board  is manufactured in the USA and is of the highest quality.  These boards are double sided, tined and plated thru holes, with solder mask on both sides, and parts legend on the top side.  The component holes are larger than most other cards on the market to allow easy changes and modification by the end user.  These blank board have been electrically tested and  visually inspected prior to shipping.
